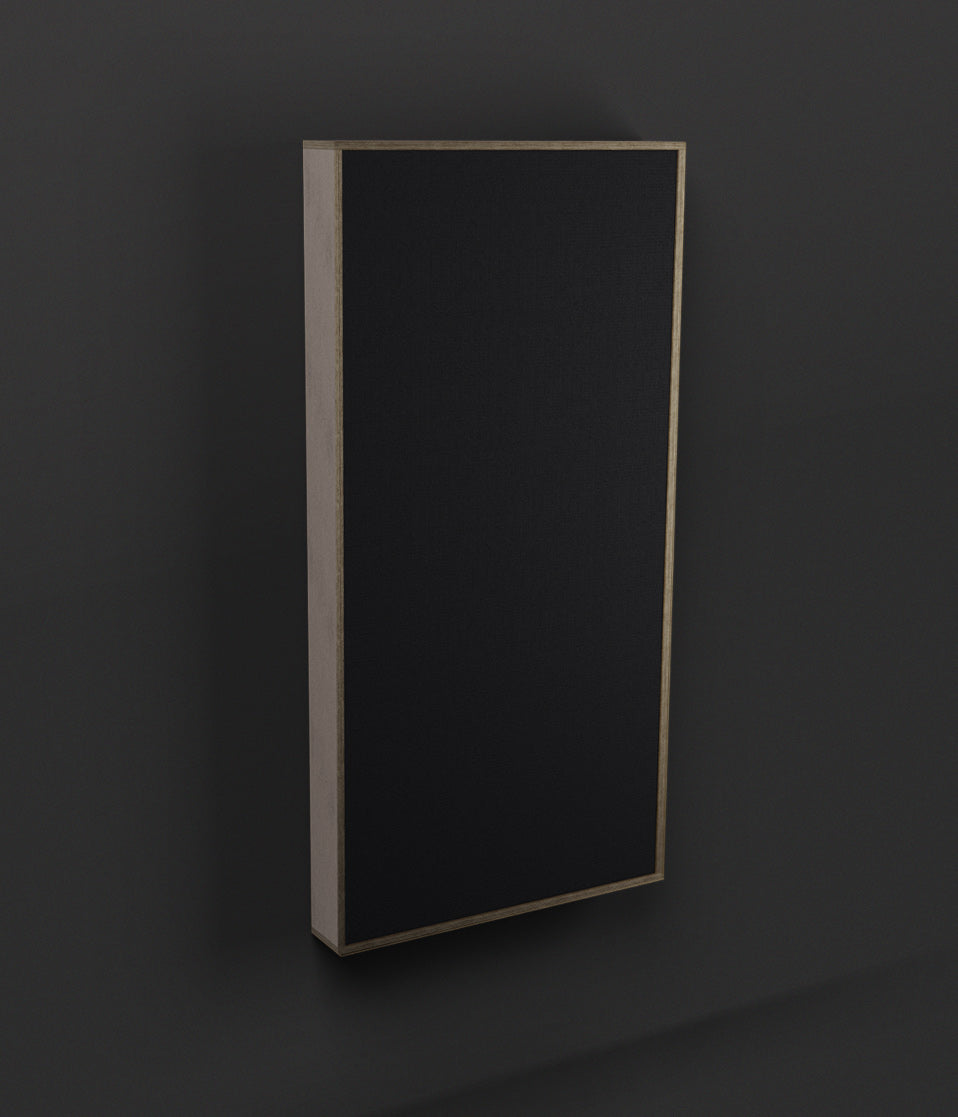

V Panel Frame
$129.00 AUD
The V Panel Frame is a high quality, broadband frequency absorber made from high density, 100% allergy and irritant free polyester insulation covered with a durable and breathable polyester acoustic specific fabric. They are designed to minimise room reflections and reverberation in a space to create a more controlled listening environment.
Suitable for:
Premium - Home and professional recording studios, rehearsal rooms, HIFI rooms and home theatres, bars, music venues and similar environments.
Ultra - Critical listening spaces such as professional recording and production studios, mastering studios, and even high end listening spaces such as HIFI rooms and home theatres.
Appearance:
Plywood frame, fabric insert, exposed back.
Dimensions:
Premium - 1222x594x100mm (+/- 3mm)
Ultra - 1222x594x200mm (+/- 3mm)
Absorption:
Premium - Tapers off approx. 250Hz at wall placement. NRC 1.0
Ultra - Tapers off approx. 125Hz at wall placement. NRC 1.0
Weight:
Premium - 7kg
Ultra - 9kg
Density:
Premium - 48kg/m3
Ultra - 20kg/m3
Calculate your room volume (LxWxHm) to match the recommendations below. Please note this guide is general as varying surfaces areas and room use may need to be factored in. Contact us for a free consultation if unsure.
20m3 = 8x panels
30m3 = 12x panels
40m3 = 16x panels
50m3 = 20x panels
60m3 = 24x panels
Wait times: Orders generally take between 1-2 weeks, sometimes longer depending on demand and supply levels. Please contact us first if you would like an ETA.
Shipping calculated at checkout.
About
An essential for any critical listening space
The same as our V Panel range but with a durable hardwood ply edging, the V Panel Frame is a popular choice, is available in a wide range of colours to match any given space and come in two depths for various applications. They have a standout design, are professionally made and can be hung in various positions with our available hang-kits or simply stacked on top of one another (Ultra size only).
Standout Design
Standout plywood frame that adds character to your space.
Damage Free Install
Premium V Panels can be hung from damage-free sticky hooks and our Ultra V Panels can simply be stacked.
Variety of applications
Effective in critical listening spaces as well as crowded social spaces.
Fire Retardant
Fire retardant cotton drill fabric and core poly insulation suitable for commercial and residential applications.
Responsable manufacturing
Made mostly from recycled or natural materials and are all locally sourced. Made in Melbourne.
Professionally made
Handcrafted with years of experiences, Verbox products are presentable, effective and affordable.
Stackable Design
The Ultra V Panels can be stacked against the wall in a variety of arrangements or simply left freestanding in a room. This allows for a wider range of uses and performance levels in any given space.
True Isolation
All of our panels provide extremely high levels of isolation when placed around instruments and microphones. They can be arranged as a portable vocal booth paired with our ‘Stands’ range or simply stacked around a guitar cab.
Versatile Placement
The V Panel can be placed directly onto surfaces, hung from the ceiling, straddled over corners and be placed off from the wall with all of our available hang-kits.
Here we have data tested from 3 varying positions of product placement: Wall, 100mm off the wall and corner placement. Please keep in mind that the data provided is mostly self-tested at Verbox and is limited in accuracy as we move down the frequency spectrum due to room limitations (200Hz downwards). We will be updating the adjustments as we continue to sample our products in various rooms to collect a larger data set.
*Data from the supplier is data provided to us.
Premium - 100mm depth
Minimal depth at maximum performance that doesn’t consume the space in your room. Suitable for semi-pro and professional listening spaces.
Ultra - 200mm depth
Highest performing and freestanding design that achieves extended low end absorption that's necessary for critical listening spaces. Also provides efficient bass trapping when placed in corners.
We offer a wide range of products to suit a variety of listening environments. To best help you decide what you need, the simplest way is to email us (info@verbox.com.au) with the following information.
-
Photo’s, room dimensions and details of the surfaces areas
-
Your ideal budget
-
Your location (will effect recommendation if not in Melbourne)
-
What the room is being used for
-
Any preference of colour or panel style (fabric wrapped/framed)
-
In need of installation or not
-
Room test data (waterfall graph etc) if you have it - not essential
With this information, we can provide a general recommendation for your room. Depending on your budget, location and your confidence with the process, we may offer a free site visit. Although we do recommend when possible for us to come out and test your rooms frequency response to get a more detailed assessment of your room. You can purchase this in the services section under ‘Room test and analysis’.
We also offer a range of packages under the ‘Packages’ section. These are discount packs to suit most small, medium and large rooms.
Verbox products are made to an exceptionally high standard using very high quality materials. We use a heavy cotton drill (yet still breathable) fabric, polyester acoustic batts (custom made for Verbox and E0 emissions rating), structural ply and MDF boards (also E0 emissions rating) and use bracing on all of our products when necessary.
However, they are still subject to damage by in-proper use and care. So we suggest you take the following precautions.
-
Wipe fabric surfaces with a clean, damp, lint free cloth to remove any dust. Blowing with a blower or vacuuming is also fine but less efficient.
-
DO NOT hold products from the front fabric face as your fingers around the frame can stretch the fabric.
-
For products that have rear support bars: only hold from one end of the bars where they join the panel. DO NOT hold them from the middle as they can easily pull apart. They are only there for additional support and are structurally sound if used correctly.
-
Also for products with rear support bars: when DIY installing, you must use 2x hang points (screws) to hang from on the wall and they must be 500mm apart (Lite Panels are an exception and can be used with 1x screw if you wish). Hanging too close together or just from 1x screw will result in the bar pulling apart from the panel. Again, this is normal and is not an issue if used correctly. Refer to the ‘Step-by-step Guide’ on the ‘Wall Kit’ product page for more information.
-
Do not stack heavy items on V Panels as they are not designed to hold a lot of weight and it may sag the fabric. The V Trap and Perf Traps are an exception but just use common sense.
-
Keep all Verbox products in a dry, dust free space to avoid general wear and tear. Avoid moving and dragging fabric wrapped products on hard or rough surfaces as it will scuff the fabric and could potentially tear.
-
Avoid bumping or knocking ply framed products as the ply is softer than other woods and will mark easily.
-
Avoid puncturing V Traps and Perf Traps as they are designed to be completely sealed and will lose their effectiveness.
-
Avoid placing products in direct sunlight to avoid fabric fading.
